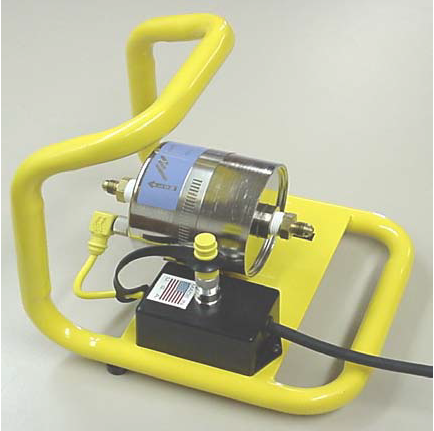

LX Thruster™ Liquid Refrigerant Transfer Pump
Premium Liquid Refrigerant Transfer Tool
New technology in refrigerant transfer: With only ONE moving part and two check valves, the magnetically driven linear piston pump is the lightest and the simplest refrigerant transfer pump available. Compressor oil or water in the refrigerant will not adversely affect the unit. The pump is self-priming and guaranteed leak-proof.
Pump Advantages
| • LIGHTWEIGHT -LESS THAN 8 LBS | |
| • RELIABLE AND VERY DURABLE | |
| • SIMPLE, SAFE & FAST TO USE | |
| • UL LISTED | |
| • LOW MAINTENANCE & RENEWABLE | |
| • HIGH LIQUID FLOW RATE | |
| • START / STOP CAPABILITIES | |
| • VAPOR TOLERANT | |
| • PUMP & MOTOR IN ONE PACKAGE | |
| • HERMETICALLY SEALED | |
| • NO OIL REQUIRED, CAN RUN DRY | |
| • LOWER OPERATIONAL & LABOR COST | |
| • FLOAT SWITCH INTERLOCK / JUMPER | |
|
• ABLE TO PULL 16” Hg VACUUM |
|
| • 35 PSI Non Compressed Liquid |
|
| • 65 PSI Refrigerants |
Performance Specifications
| • Direct Liquid Transfer Pumping Rate is 2.5 lbs / min Continuous Duty with vapor bypass | |
| • Vapor push/pull 4 lbs/min (intermittent duty) | |
| • Compatible with category 3 refrigerants. (Not to be used with any explosive, combustible, or flammable materials. Not be be used with ammonia. Not explosion proof) |
Product Specifications
| • Inlet Outlet Fitting Size: 3/8” FNPT or 1/4” M Flare Fitting | |
| • Power: 110 Vac, 60Hz, 130 Watts | |
| • Float Switch Interlock Cable Length: 6 |
Refrigerant Tools can renew your pump...usually within 48 hours.
Limited Warranty: LX Thruster™ Liquid Refrigerant transfer pump is warranted against defects in workmanship and materials under normal use for one year. Refrigerant Tools assumes no liability on the actual use of this equipment. Components subject to normal wear and tear, such as elastomeric components, are specifically excluded from this warranty.
